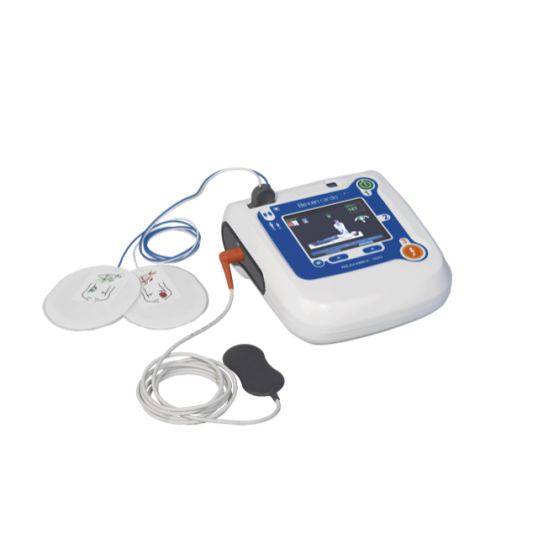

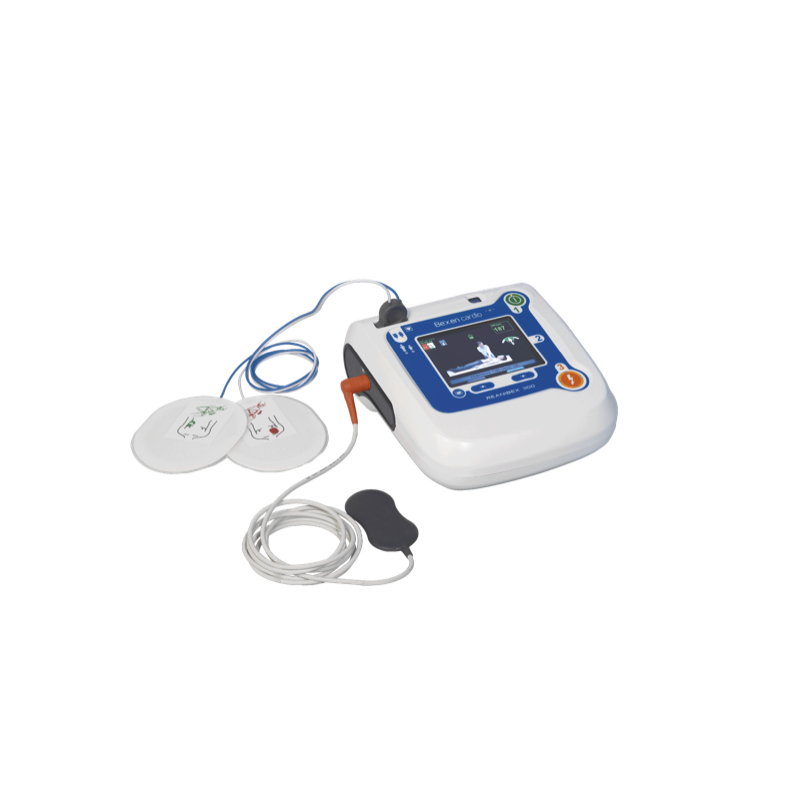

DEFIBRILLATOR AED WITH MANUAL OVERRIDE

• Waveform : Biphasic truncated exponential adjusted to the impedance of the patient
• Output energ : From 150 to 360 Joules for adult patients - From 40 to 90 Joules for pediatric patients

• Charging Time :

Less than 5 seconds at 200 Joules with a new fully charged battery at 25°C - Less than 7 seconds at 360 Joules with a new fully charged battery at 25°C

• Indicators : Text Messages, audible alerts, status indications, battery indicator, metronome, CPR help with feedback

• Available energy indicators : Charging tone, available energy tone, flashing discharge button, audible messages

AED MODE

• Defibrillable rhythm : Ventricular fibrillations and rapid ventricular tachycardias CPR

• Help : Metronome with compressions rate feedback in real time

• With the push-pad device option: compressions rate and depth feedback in real time

• Specificity and sensitivity of the detection algorithm : Fulfills AHA requirements

• Dimensions : 290 mm (W) x 245 mm (D) x 100 mm (H)

• Weight : 2.9 Kg (with battery)

Contact us

  • 50

    50 years of experience

  • Large distribution network

  • Quality technical services

More info

SCREEN

• Display size: 5,7 “ (diagonal)

• Type: TFT Colour

• Sweep rate: 25 mm/s for the ECG Display time

• 4 seconds of ECG signal

DATA STORAGE

• Internal memory: Stores the continuous ECG signal with all the events and the sound (only in AED mode). Up to 4GB, which is approximately 10 hours of continuous ECG signal with all the events and audio recording for each episode

• USB connection : For USB memory stick

BATTERY

• Type: Li-Ion rechargeable battery and Li-SO2 non-rechargeable battery

• Battery indicators: Battery status indicator on screen, low battery indication and absence of battery indication on the status indicator

• Capacity Rechargeable battery: More than 200 discharges at 360 Joules with a new fully charged battery at 25°C

• Non-rechargeable battery: More than 270 discharges at 360 Joules at 25°C

MANUAL MODE

• Energy selection: By configuration

ACCESSORIES

• Adult and paediatric disposable electrodes for defibrillation

• Carrying case

• Ambulance bracket (EN 1789: 2007 certified)

• « Push Pad » device

• Rechargeable and non rechargeable battery

• External battery charger

• External dual battery charger 12V (DC) or 220V (AC).

• « REANIBEX Data Manager » Software application to manage and organise

all the data gathered

• Rechargeable battery for auto-training and trainer mode
